Karakteristik Dasar
| Tidak. | Barang | Spesifikasi | |||
| 1, | Model Sel | FT3.2V/6Ah | |||
| 2, | Modus susunan | 4S13P | |||
| 3, | Kapasitas nominal | 78Ah (Pengisian standar 0,5C dan pelepasan 0,5C) | |||
| 4, | Kapasitas Minimum | 78Ah | |||
| 6, | Tegangan Nominal | 12.8V | |||
| 7, | Impedansi AC Awal | 3mΩ (pada 1kHz setelah pengisian standar) | |||
| 8, | Tegangan pengisian: | 14.6V | |||
| 9, | Tegangan Pengosongan | 9.2V | |||
| 10, | Metode pengisian standar | Arus Konstan: 39A (0,5C) | |||
| 11, | Metode pemakaian standar | Arus Konstan: 78A (1C) | |||
| 12, | (≦2.3S) Arus pelepasan kontinu maksimum (≦2.3S) | Arus Konstan: 156A (2C) | |||
| 13, | Siklus Hidup | Siklus Hidup≥1500次 | |||
| 14, | Berat (Kg) | 10.2kg | |||
| 15, | Suhu Operasional | Pengisian: 0℃～55℃ Pengosongan: -20℃～60℃ |
|||
| 16, | Suhu Penyimpanan | 1 bulan: -20℃～60℃ 3 bulan: -20℃～45℃ 1 tahun: -20℃～25℃ |
|||
| 17, | Kelembaban relatif | 65±20% | |||
| 18, | Tegangan pengiriman | 12.8V | |||
| 19, | Kelas tahan air | 0 | |||
| 20, | Retensi dan kapasitas pengisian daya kemampuan pemulihan |
Isi daya baterai standar, lalu sisihkan pada suhu kamar selama 28 hari atau 55 selama 7 hari, Tingkat retensi pengisian daya ≥90%, Tingkat pemulihan pengisian daya≥90 |
|||
Aplikasi:

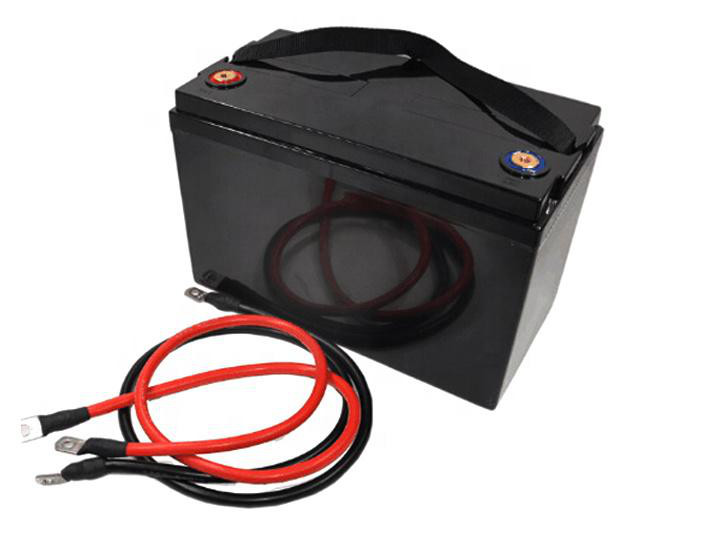

Gambar untuk PAKET baterai LiFePO4 12.8V 78Ah yang serupa
| 序号 | MODEL | Tegangan Nominal | Kapasitas | Ukuran | Isi arus | Mengisi tegangan | Arus Debit | Tegangan Pelepasan |
| 1 | 12.8V5Ah | 12.8V | 5Ah | 90*70*101mm | 2A | 14.4V-14.6A | 10A | 10.0V-10.5V |
| 2 | 12.8V6Ah | 12.8V | 7Ah | 151*65*95mm | 3A | 14.4V-14.6A | 15A | 10.0V-10.5V |
| 3 | 12.8V8Ah | 12.8V | 9Ah | 151*65*100mm | 4A | 14.4V-14.6A | 20A | 10.0V-10.5V |
| 4 | 12.8V12Ah | 12.8V | 12Ah | 151*99*98mm | 4A | 14.4V-14.6A | 25A | 10.0V-10.5V |
| 5 | 12.8V18Ah | 12.8V | 18Ah | 183*77*156mm | 6A | 14.4V-14.6A | 30A | 10.0V-10.5V |
| 6 | 12.8V20Ah | 12.8V | 20Ah | 181*77*175mm | 8A | 14.4V-14.6A | 50A | 10.0V-10.5V |
| 7 | 12.8V25Ah | 12.8V | 25Ah | 166*175*125mm atau 168*161*106 | 10A | 14.4V-14.6A | 60A | 10.0V-10.5V |
| 8 | 12.8V33Ah | 12.8V | 33Ah | 194*132*172mm | 10A | 14.4V-14.6A | 80A | 10.0V-10.5V |
| 9 | 12.8V50Ah |
12.8V | 55Ah | 223*150*178mm | 20A | 14.4V-14.6A | 100A | 10.0V-10.5V |
| 10 | 12.8V100Ah bluetooth |
12.8V | 100Ah | 330*170*220mm | 30A | 14.4V-14.6A | 125A | 10.0V-10.5V |
| 11 | 12.8V100Ah | 12.8V | 100Ah | 330*170*220mm | 30A | 14.4V-14.6A | 125A | 10.0V-10.5V |
| 12 | 12.8V130Ah | 12.8V | 130Ah | 330*170*220mm | 35A | 14.4V-14.6A | 150A | 10.0V-10.5V |
| 13 | 12.8V200Ah | 12.8V | 200Ah | 483*170*240mm | 60A | 14.4V-14.6A | 200A | 10.0V-10.5V |
